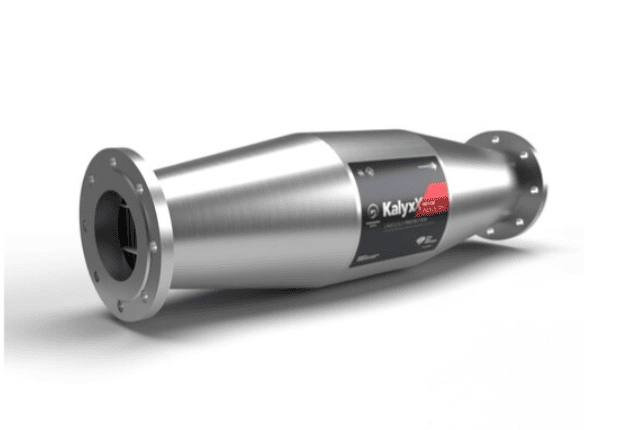

IPS Industry TGP RedLine DN 125 – Very High-Flow Limescale Protection
The IPS Industry TGP RedLine DN 125 is an inline water treatment system engineered for very high-flow, continuous-operation environments such as large residential complexes, commercial buildings, and industrial facilities. Installed at the main water entry point, it provides whole-building/system protection by reducing limescale formation in pipework, valves, heat exchangers, boilers, and water-using equipment.
At its core, the system uses patented TGP® (Turbulent Galvanic Polarisation) technology to physically disrupt the formation of hard limescale crystals as water flows through the unit. This process delivers a confirmed limescale reduction efficiency of up to 76%, without altering the chemical composition of the water and without the need for consumables or external energy.
Designed for Extreme Flow Demands
The Industry RedLine DN 125 is specifically intended for installations with very high hourly flow rates and continuous water demand, including:
- Large apartment buildings and residential complexes
- Breweries and distilleries
- Commercial and industrial facilities
- Central boiler rooms and heating plants
- Heat exchangers and plate exchangers
- Industrial laundries, kitchens, and technical water systems
Safe for Drinking and Hot Water
The IPS Industry TGP RedLine DN 125 is suitable for both cold (drinking) and hot water applications. All components are manufactured from materials approved for permanent contact with potable water and verified for hydraulic safety, pressure resistance, and mechanical strength.
Robust Industrial Construction
- Heavy-duty stainless steel body (1.4301)
- Designed for continuous, very high-flow operation
- Resistant to corrosion, pressure, and temperature fluctuations
- Maintenance-free operation
- Expected service life of at least 10 years
- 2 year manufacturer warranty
Sizing & Flow Capacity
The IPS Industry TGP RedLine DN 125 is designed for very high-capacity installations:
- Nominal diameter: DN 125
- Connection: Flanged
- Maximum flow rate: up to 54 m³/h
Correct sizing based on system flow demand is essential to ensure effective limescale reduction and stable hydraulic performance.
Technical Overview
- Limescale reduction: up to 76%
- Technology: Patented TGP® (Turbulent Galvanic Polarisation)
- Material: Stainless steel
- Maximum operating pressure: 10 bar / 1 MPa
- Suitable for: Cold (drinking) and hot water
- No electricity, chemicals, filters, or maintenance required
