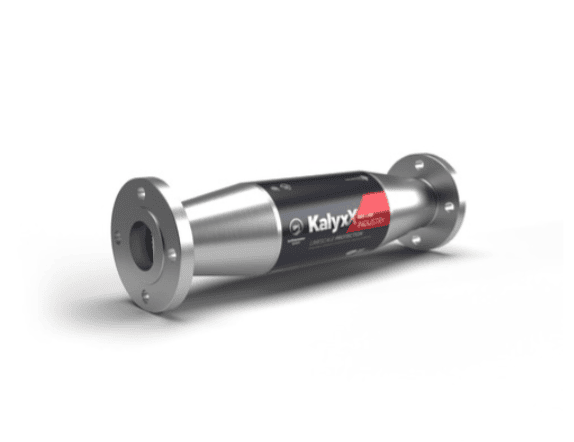

IPS Industry TGP RedLine DN 65 – High-Flow Limescale Protection
The
IPS Industry TGP RedLine DN 65 is an inline water treatment system engineered for
high-flow, continuous-operation environments such as apartment buildings, commercial facilities, and industrial installations. Installed at the main water entry point, it provides
whole-building protection by reducing limescale formation in pipework, valves, heat exchangers, boilers, and water-using equipment.
At its core, the system uses patented TGP® (Turbulent Galvanic Polarisation) technology to physically disrupt the formation of hard limescale crystals as water flows through the unit. This process delivers a confirmed limescale reduction efficiency of up to 76%, without altering the chemical composition of the water and without the need for consumables or external energy.
Designed for High-Demand Systems
The Industry RedLine range is specifically intended for systems with very high hourly flow rates and continuous water demand, including:
- Apartment buildings and multi-unit residential properties
- Breweries and distilleries
- Commercial and light industrial facilities
- Boiler rooms and central heating systems
- Heat exchangers and plate exchangers
- Laundries, kitchens, and technical water systems
Safe for Drinking and Hot Water
The
IPS Industry TGP RedLine DN 65 is suitable for both
cold (drinking) and hot water applications. All components are manufactured from materials approved for permanent contact with potable water and verified for
hydraulic safety, pressure resistance, and mechanical strength.
Robust Industrial Construction
- Heavy-duty stainless steel body (1.4301)
- Designed for continuous, high-flow operation
- Resistant to corrosion, pressure, and temperature fluctuations
- Maintenance-free operation
- Expected service life of at least 10 years
- 2 year manufacturer warranty
Sizing & Flow Capacity (Important)
The
IPS Industry TGP RedLine DN 65 is designed for high-capacity installations:
- Nominal diameter: DN 65
- Connection: Flanged
- Maximum flow rate: up to 16 m³/h
Correct sizing based on system flow demand is essential to ensure effective limescale reduction and stable hydraulic performance.
Technical Overview
- Limescale reduction: up to 76%
- Technology: Patented TGP® (Turbulent Galvanic Polarisation)
- Material: Stainless steel
- Maximum operating pressure: 10 bar / 1 MPa
- Suitable for: Cold (drinking) and hot water
- No electricity, chemicals, filters, or maintenance required
