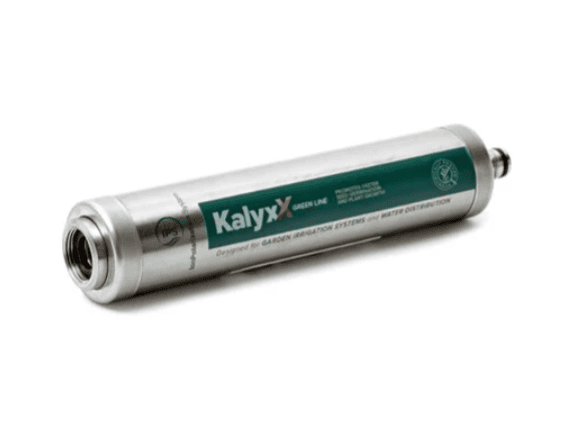

IPS KalyxX GreenLine 3/4" – Limescale Protection for Irrigation and Water DistributionThe IPS KalyxX GreenLine 3/4" is an inline water treatment system engineered for outdoor and distribution applications such as irrigation systems and technical water supply lines. Installed at the water connection point, it protects connected pipework, valves, fittings, and equipment by physically disrupting limescale crystallisation as water passes through the unit.
At its core, the system uses a patented TGP® electrode with patented disc composition, delivering limescale reduction efficiency of up to 76% without altering the chemical composition of the water and without requiring external energy or consumables.
Designed for Irrigation and Distribution Systems
The KalyxX GreenLine range is specifically intended for water distribution and irrigation applications, including:
- Garden irrigation systems
- Public parks and green areas
- Football turf and golf courses
- Hydroponic systems
- Fruit and vegetable cultivation
- Animal watering systems
The system also helps reduce visible traces of dried minerals after washing vehicles or equipment.
Safe, Proven Technology
The IPS KalyxX GreenLine is a safe, purely physical water treatment solution with verified hydraulic performance. The product is tested according to TSU protocols for pressure drop, pressure resistance, and mechanical strength.
It is compatible with common pipe materials including copper, CPVC, PVC, and PEX.
Robust, Maintenance-Free Design- Durable stainless steel body (1.4301)
- Corrosion-resistant internal components
- Designed for continuous operation
- No electricity, chemicals, or filters required
- No maintenance or filter replacement required
- Expected service life of at least 10 years
- 2 years warranty
Sizing & Flow Capacity
The IPS KalyxX GreenLine 3/4"-H is designed for compact point-of-connection installations:
- Connection: G 3/4" female
- Outlet: Garden hose quick connector
- Maximum flow rate: up to 1.5 m³/h
- Maximum operating pressure: 10 bar / 1 MPa
Correct sizing based on system flow demand is essential to ensure effective limescale reduction and stable hydraulic performance.
Technical Overview- Limescale reduction efficiency: up to 76%
- Technology: Patented TGP® (Turbulent Galvanic Polarisation)
- Material: Stainless steel (1.4301)
- Pipe compatibility: Copper, CPVC, PVC, PEX
- Connection diameter: Ø50 mm
- Length: 255 mm
- Weight: 830 g
- Maximum operating pressure: 10 bar / 1 MPa
- Maximum flow rate: 1.5 m³/h
- Pressure drop at max flow: 0.3 mBar / 30 Pa
- Operating temperature (inlet): 0 °C to 35 °C
- Optimal operating temperature (inlet): 0 °C to 60 °C
- No electricity, chemicals, filters, or maintenance required
