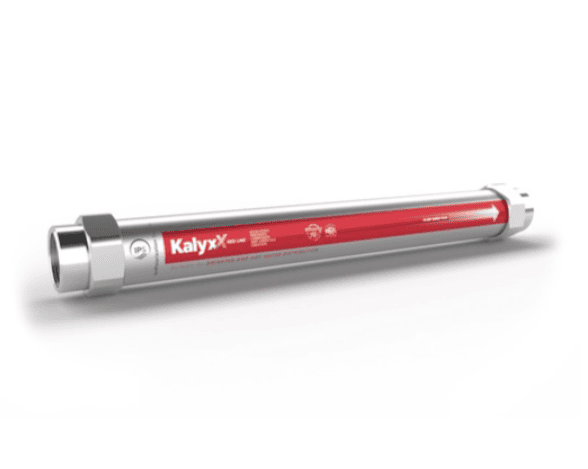

IPS KalyxX RedLine – Whole-Building Limescale Protection for Higher Flow Rates
The IPS KalyxX RedLine (5/4" and 6/4") is an inline water treatment system engineered for buildings with increased water demand, such as larger residential properties, multi-unit buildings, and light commercial applications.
Installed at the main water inlet, it provides whole-building protection by reducing limescale formation in pipework, valves, taps, shower heads, and water-heating elements.
At the core of the system is patented TGP® (Turbulent Galvanic Polarisation) technology, which physically disrupts the formation of hard limescale crystals as water flows through the device. This process achieves a confirmed limescale reduction efficiency of up to 76%, without changing the chemical composition of the water.
Designed for Drinking and Hot Water Systems
The IPS KalyxX RedLine is suitable for both cold (drinking) and hot water installations. All components are manufactured from materials approved for permanent contact with potable water and verified for hydraulic safety, pressure resistance, and long-term durability.
Robust, Maintenance-Free Construction- Durable stainless steel body (1.4301)
- Corrosion-resistant and temperature-stable
- Designed for continuous, high-flow operation
- Expected lifespan 10 years
- 2 years warranty
- No maintenance, electricity, or consumable parts required
Sizing & Flow Capacity
The larger RedLine variants are designed to handle increased flow while maintaining effective whole-building limescale reduction:
- RedLine 5/4" – maximum flow up to 5 m³/h
- RedLine 6/4" – maximum flow up to 7 m³/h
Correct sizing based on building flow demand and incoming pipe diameter is essential to ensure optimal performance and minimal pressure drop.
Technical Overview- Limescale reduction: up to 76%
- Technology: Patented TGP® (Turbulent Galvanic Polarisation)
- Material: Stainless steel
- Operating temperature (inlet): 0 °C to 95 °C
- Maximum operating pressure: 10 bar / 1 MPa
- Certified for direct contact with drinking water
